Recently I was busy building a nice case for an Arduino and I needed the dimensions to make the correct mounting holes.

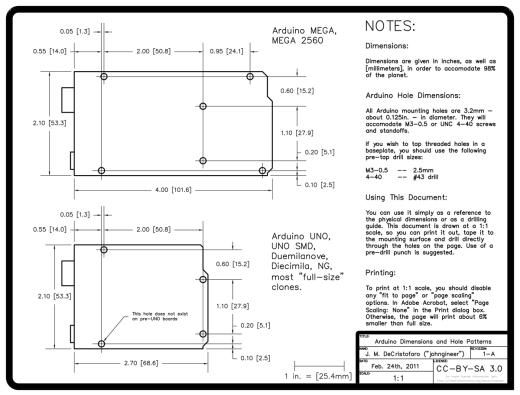

I found this handy diagram online and though I would share it with everyone.
UPDATE:

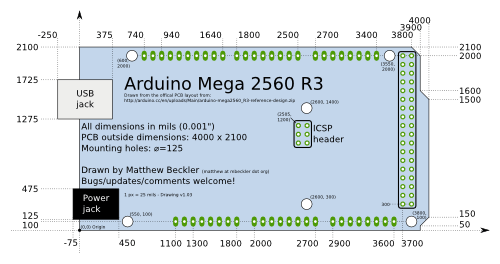

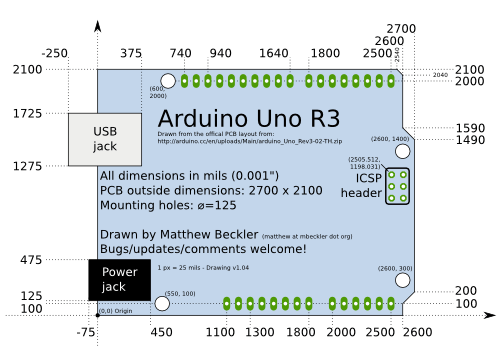

Here are some more drawings that include the pin layouts as well.
